Application Stack

The application stack manages applications, services and Service Instance.

Use Cases

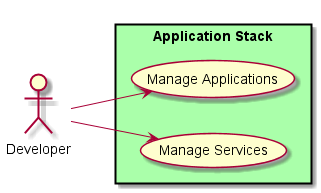

../../_images/UseCases4.png

Users

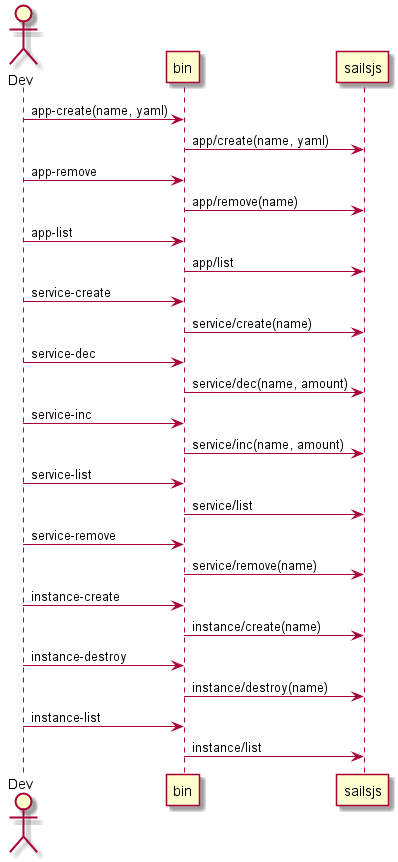

../../_images/UserInteraction.png

Interface

  • CLI - Command Line Interface,
  • REST-API - Standard REST interface through the Sailsjs application
  • Portal - Web Portal - Delivered through the sailsjs application

Logical Artifacts

  • Application - contains multiple services.
  • Service - represents a micro services. It has replicas which is shown as ServiceInstances.
  • ServiceInstance - an instance of a service determined by the number of replicas.
  • CloudResource - A Cloud Resource that the ServiceInstance runs on or consumes resources from the Cloud (compute, storage, network)

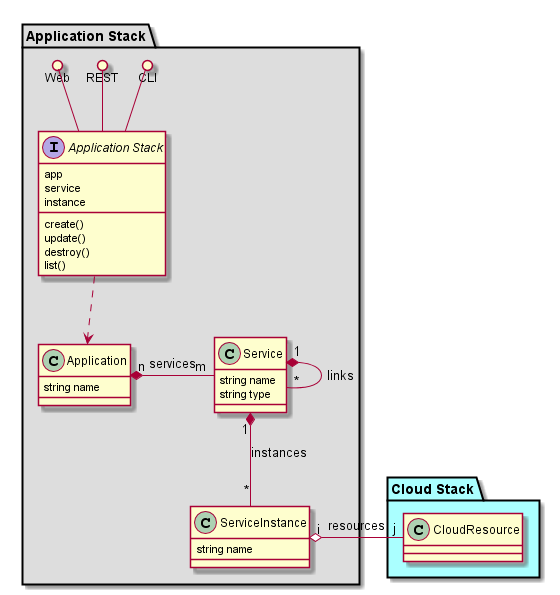

../../_images/Logical.png

Activities and Flows

A typical application stack workflow or activity follows these basic patterns: * Create Application * Modify Application * Delete Application

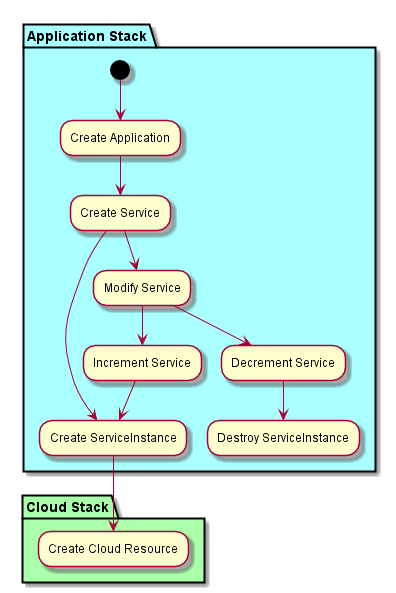

../../_images/Process.png

Deployment Architecture

The fleet application is deployed with the default database for a sailsjs application.

../../_images/Deployment.png

Physical Architecture

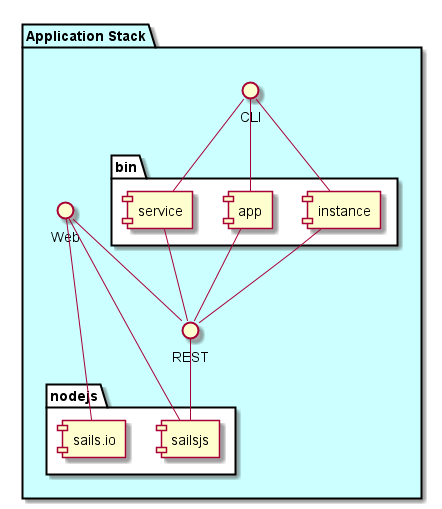

There are three interfaces to the Application Stack subsystem. CLI, Web, and REST. The CLI communicates with the Application Stack via the REST interface. All REST interfaces are accessible via a CLI. The Web interface utilizes the sails.io subsystem to have a web interface that is interaction with the sailsj application without pooling (COMET).

../../_images/Physical1.png
